betterbrace - RIGID AIR BARRIER

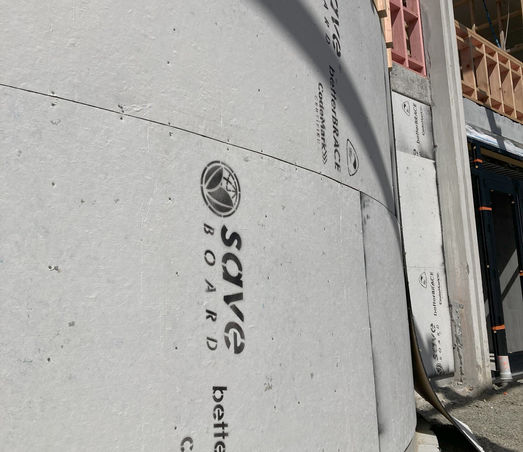

saveBOARD betterBRACE Rigid Air Barrier is a cost-effective rigid air barrier for use in residential to multi-story construction. Designed for use in Extra High wind zone. Finished with an external moisture resistant Fiberglass facing material; it is an alternative to traditional building underlays.

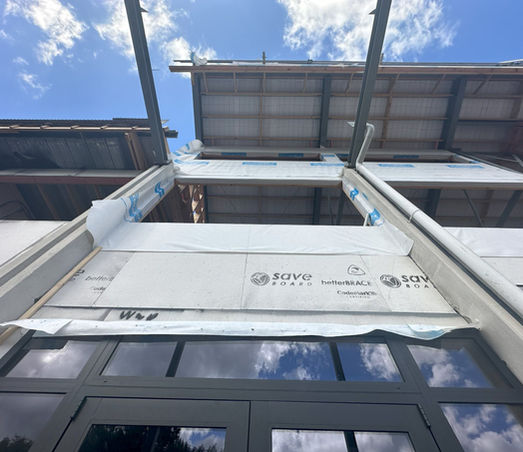

It allows builders the ability to close in a building sooner to begin interior fit out, along with additional noise and insulation properties. The fit out can be started independently of the exterior rain screen minimising potential delays to the project.
APPLICATION
-

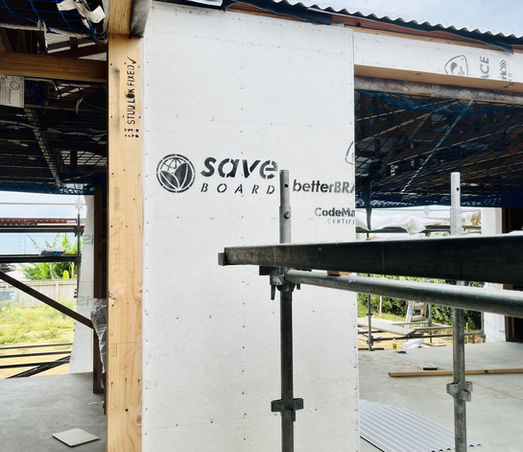

Exterior rigid air barrier
-
Excellent wind and seismic bracing capacity
-
Climate Zones 1, 2, 3
-
Climate Zones 4, 5 & 6 must have continuous mechanical ventilation system installed.
-
Material Group 3 fire rating.
-
STC Rating of 30dBA at 10mm thickness board only
EXPOSURE
-
CodeMark - 7 days before building wrap applied, then exposure duration as specified by the wrap manufacturer before cladding installed.
-
Alternative Solution - Taped joints - up to 90 days before cladding installed.
THICKNESS
10mm
LENGTH - All 1200mm wide
2450mm, 2750mm, 3000mm
Custom cut up to 6000mm, with minimum order qty.
DESCRIPTION
-
Engineered composite board for external underlay applications.
-
Impact resistant
-
Excellent wind & seismic bracing capacity
-
Noise attenuation with high STC rating - 30dBA at 10mm thickness board only
-
Water repellent
-
ZERO Water, Glues, Chemicals added. VOC's and Formaldehydes are < 5% of the Green Building Standard (0.005mg/m2/hr)
-
Declare label: Our products have been determined to meet the requirements for all applicable Imperatives of the Living Building Challenge.
-
Embodied Energy calculations have been completed for our products for a 'cradle to gate' life cycle.
-
Use MasterSpec 4171SB
-
Bracing Capacity:
-
Bracing length 0.4m; W = 65 BU/m EQ = 76 BU/m
-
Bracing length 0.6m; W = 87 BU/m EQ = 98 BU/m
-
Bracing length 1.2m; W = 143 BU/m EQ = 154 BU/m
-
COMPLIANCE
The product has been successfully tested and Codemark certified in New Zealand and can be used as a structural bracing unit and demonstrates performance above NZ market leading products.
The documentation attached clearly demonstrates that saveBOARD meets all obligations under s14G of the Building Act.
Alternative Solution - Video
Not covered by CodeMark
